Delete Screw Tool

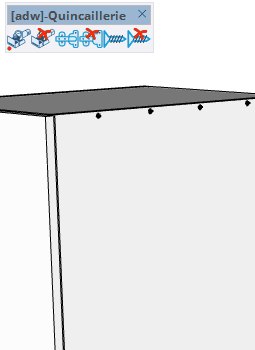

Remove screws from panels by clicking on them — hover over a panel face to highlight the nearest screw, then click to delete it along with its associated machining.

How to use

1. Hover over a panel face — the nearest screw is highlighted
2. Click to delete the screw and its machining from the panel
3. Hold Shift to select all identical screw parts on the same panel and delete them together

Keys

• Shift = Select all identical screw parts on the panel
• Esc = Cancel the operation

Tips

• The tool automatically finds the closest screw part to the cursor position
• Shift is useful for removing all instances of the same screw type at once
• Both the screw component and its machining data are removed on click
